Prodotti / Automazione industriale / Comando e Protezione Motore / Salvamotori /

ABB SpA: componenti elettrici online a prezzi scontati | Rexel
Cod. Rexel
ABMS1321V6K
Cod. Produttore
MS1321V6K
Cod. EAN
4013614400360

Informazioni di prodotto

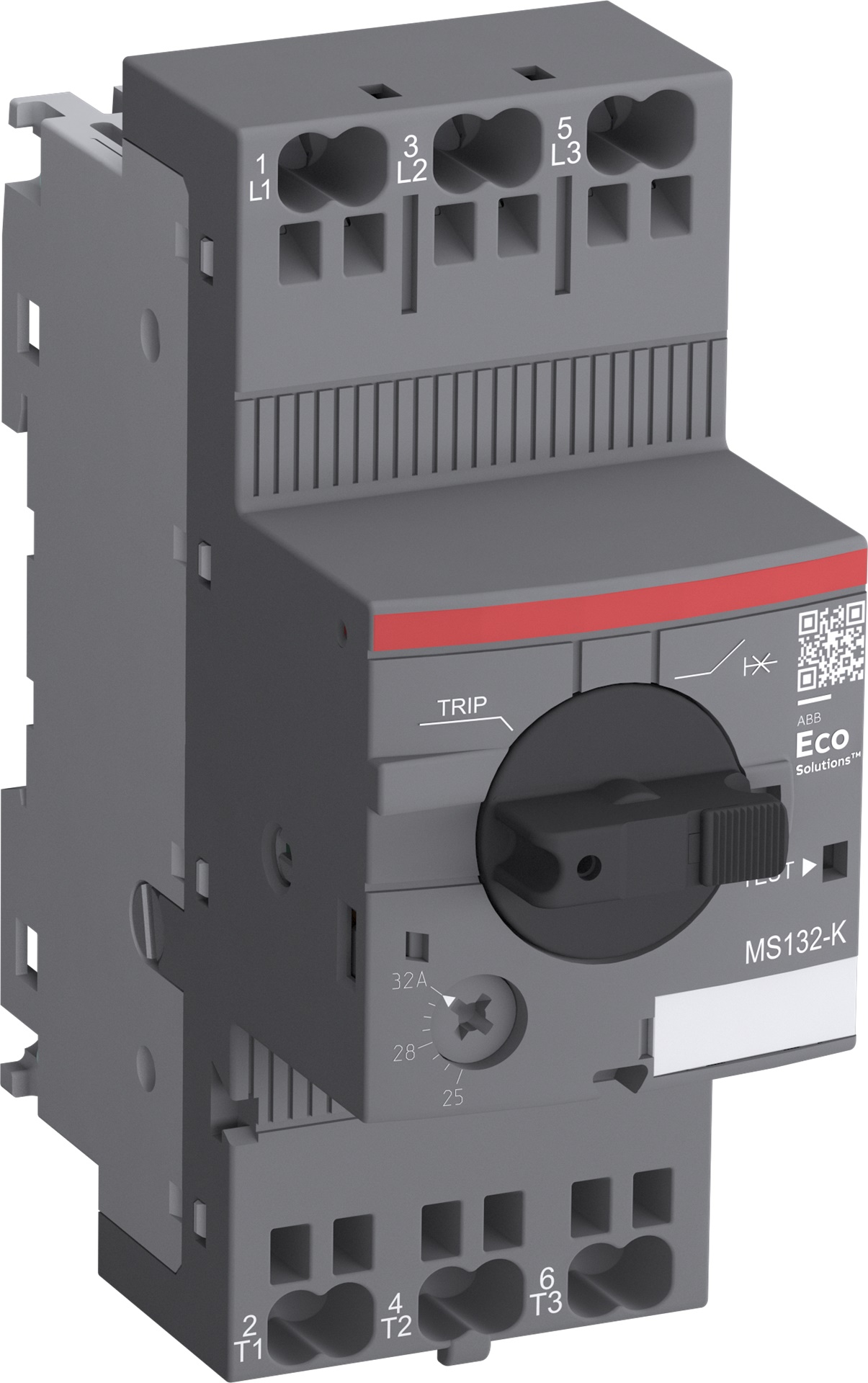

MS132-1.6K Manual Motor Starter 1.0 ... 1.6 A

Documentazione tecnica

Salvamotore MS132-1.6K progettato per la protezione efficiente dei motori elettrici. Questo dispositivo garantisce sicurezza e affidabilità nell'interruzione automatica in caso di sovraccarico, prevenendo danni al motore e migliorando la durata dell'impianto elettrico. Realizzato con materiali di alta qualità, assicura prestazioni costanti e una lunga vita operativa. Ideale per applicazioni industriali e civili, si integra facilmente nei sistemi di controllo elettrico per una gestione ottimale della potenza. Descrizione del produttore: The MS132-1.6K manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 1.60 A with Push-in spring terminals. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The MS132-K manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The MS132-K manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.

Serie

MS132

Produttore

ABB

Salvamotore MS132-1.6K 1,6A protezione motori sovraccarico corto circuito uso industriale e civile
