Descrizione del prodotto

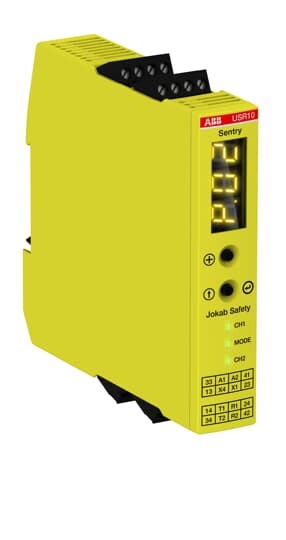

Il dispositivo SENTRY USR10 24VDC è un relè di sicurezza progettato per il monitoraggio affidabile di circuiti di arresto d’emergenza e interruttori di posizione. Dotato di morsetti amovibili e con possibilità di montaggio su guida portante, garantisce un collegamento elettrico sicuro e flessibile. Questo relè è ideale per applicazioni che richiedono un controllo preciso e sicuro, assicurando la protezione e l’integrità degli impianti elettrici. La sua struttura compatta e l’efficienza operativa lo rendono un componente essenziale per sistemi di sicurezza industriale. Descrizione del produttore: Sentry USR10 Universal safety relay with delayable relay outputs 3NO+1NC, +24 VDC power supply and screw terminals.
For monitoring of safety devices with contacts, 1 or 2 equivalent or antivalent channels, safety devices with OSSD outputs, two-hand devices, safety mats and safety edges/bumpers.
Timer function 0-999 seconds with a better accuracy than 1%: OFF-delay, ON-delay, Time bypass and Time reset.
A display on front facilitates configuration and troubleshooting by displaying error codes and error log. A custom configuration can be protected by password.
Manual or automatic reset selectable.
Sentry safety relays cover various types of safety applications up to PLe / SIL3.
Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.
Models with display offer preset configurations and extensive information to further simplify troubleshooting.
Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s.
High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button.
All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
