Descrizione del prodotto

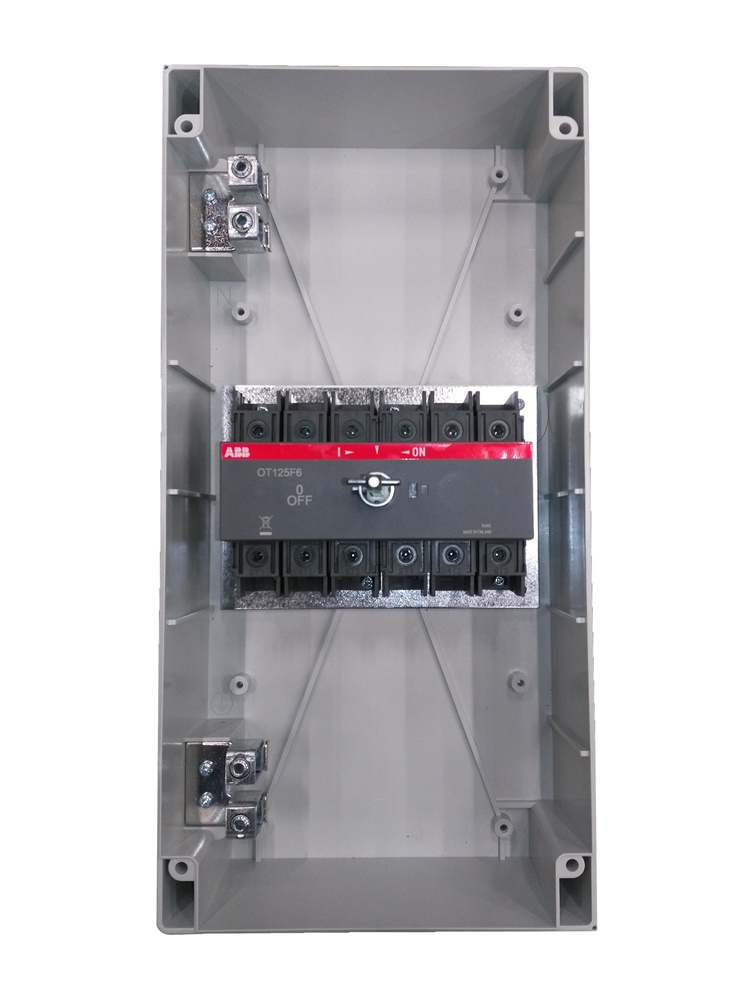

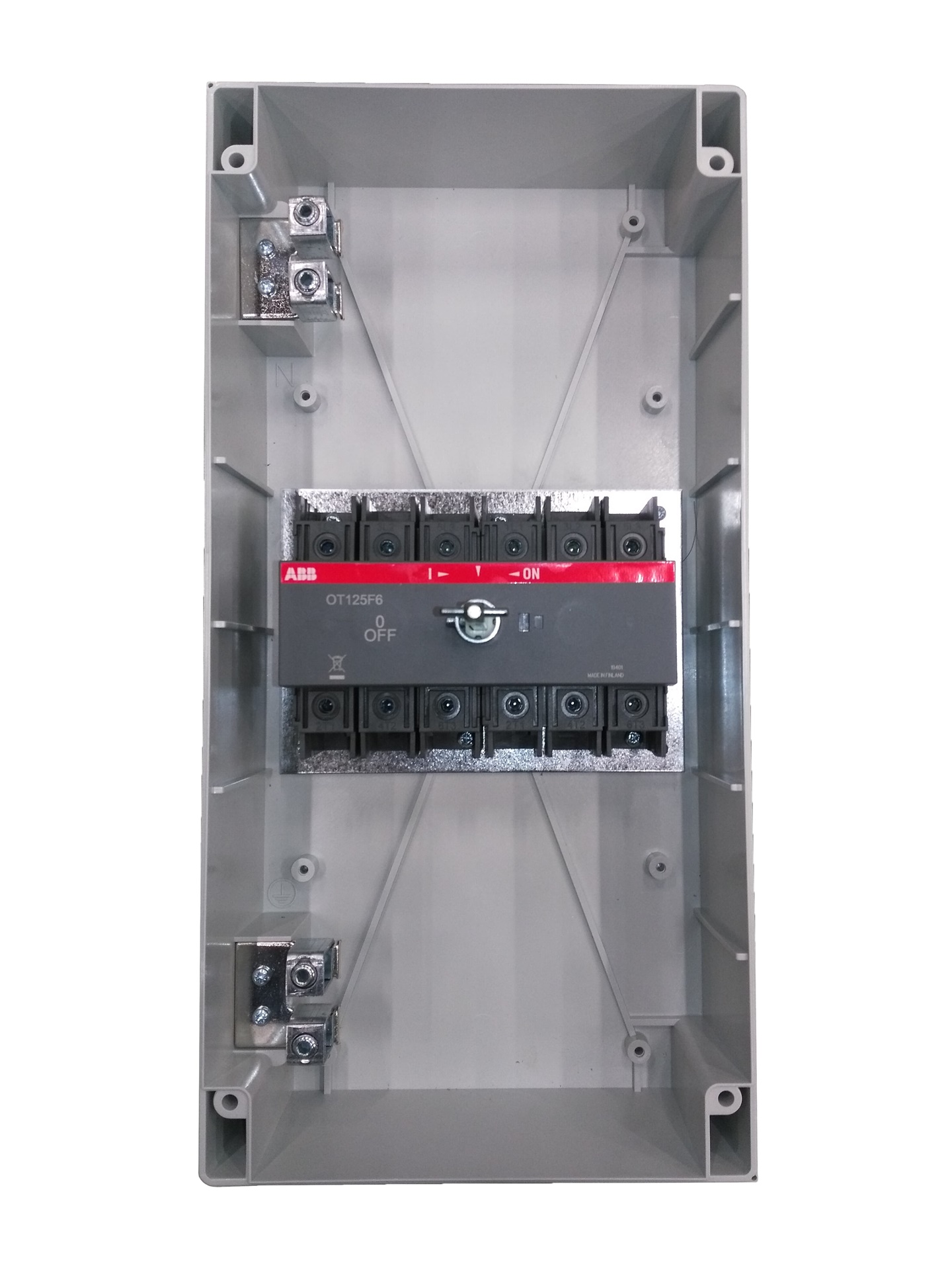

Interruttore elettrico OTP125B6M con portata di corrente nominale di 125A, adatto per applicazioni fino a 690 V in corrente alternata secondo la categoria AC22. Progettato per garantire affidabilità e sicurezza nelle installazioni elettriche, offre prestazioni elevate in ambienti industriali e civili. La sua struttura robusta assicura una lunga durata e una protezione efficace contro sovraccarichi e cortocircuiti, rendendolo ideale per il controllo e la gestione di circuiti elettrici di media potenza. Descrizione del produttore: Encl. Switch Disconnector, 6-p. 415V AC23 90A, 45kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
