Descrizione del prodotto

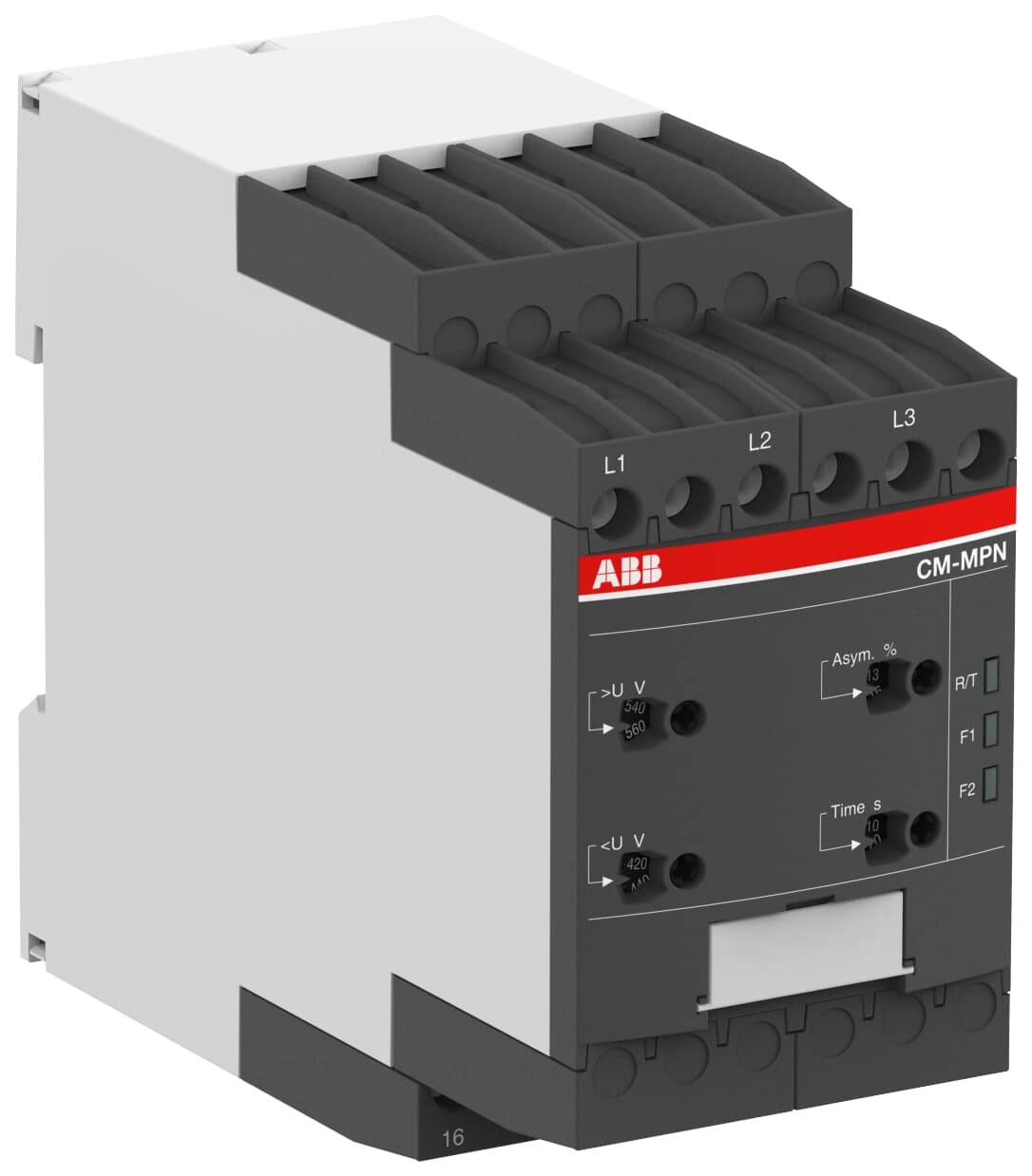

Codice Ordine: CMMPN72S - Elettronica di comando e controllo, Relè di controllo elettronici, Controllo delle fasi in sistemi trifase, CM-MPN.72S Tens. di controllo da 530-820V c.a. 50/60 Hz, Alim=Vn con auto correz. sequenza fase, multif. per trifase senza neutro - vite, Prodotti di comando, controllo, elettronica e sistemi per la sicurezza Descrizione del produttore: The CM-MPN.72S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 530-820 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. The CM-MPN.72S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
