Descrizione del prodotto

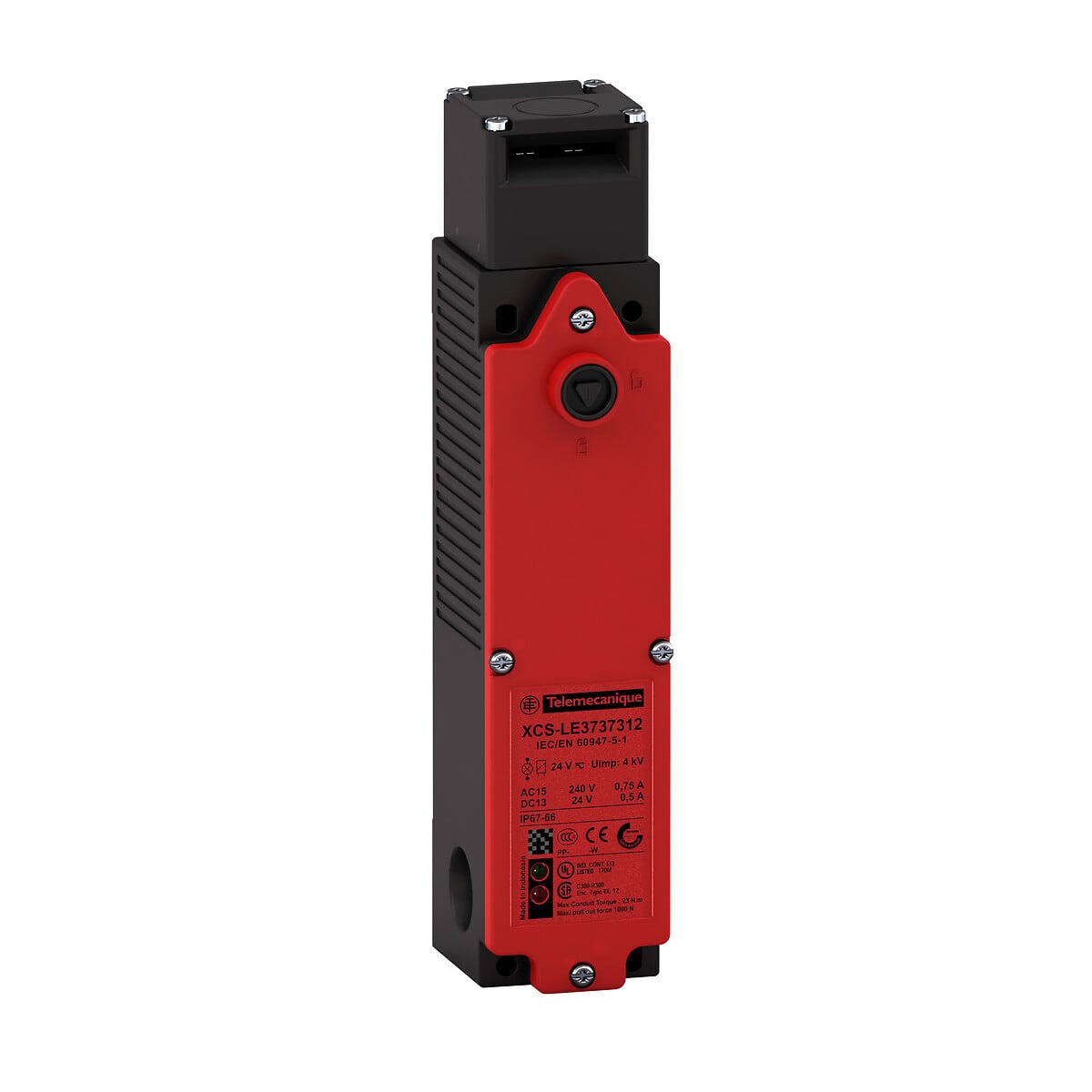

This product is part of the XCS range, an offer of safety switches. The safety switch is an electrical switch that makes or breaks contact in the presence of a magnetic field. This safety switch has 2 NC and 1 NO, slow break, break before make, NC contacts with the positive opening operation. The switch with a rated operating current of 0.75A at 240V AC, 0.55A at 24V DC and conventional enclosed thermal current of 4A. It is furnished with spring terminal for electrical connection and 3 entries tapped for M20 x 1.5 cable gland. It is an IP66/IP67 rated product. The key operated turret head has PA (polyamide) body. Its dimensions are 44mm (width) x 51mm (depth) x 205mm (height). It weighs 0.53kg. It is intended as far as safety is concerned all dangerous machines in all sectors are involved, such as packaging, robotics, machine tools and automotive sectors. This product is certified by CSA and UL. It meets EN 1088/ISO 14119, EN/ISO 13849-1, EN/IEC 60204-1, UL 508, CSA C22.2 No 14, EN/IEC 62061 and EN/IEC 60947-5-1 standards. The XCS safety switches is one of the most comprehensive ranges of industrial safety switches on the market, providing a range of options for most machine applications. XCS safety switches are designed for the protection of operators, by controlling the safe opening and interlocking of guards and covers in installations.
