Prodotti / Distribuzione elettrica /

Cod. Rexel
TE9007AO12
Cod. Produttore
9007AO12
Cod. EAN
0785901807520

Informazioni di prodotto

FINECORSA 600VCA 15 AMP

Documentazione tecnica

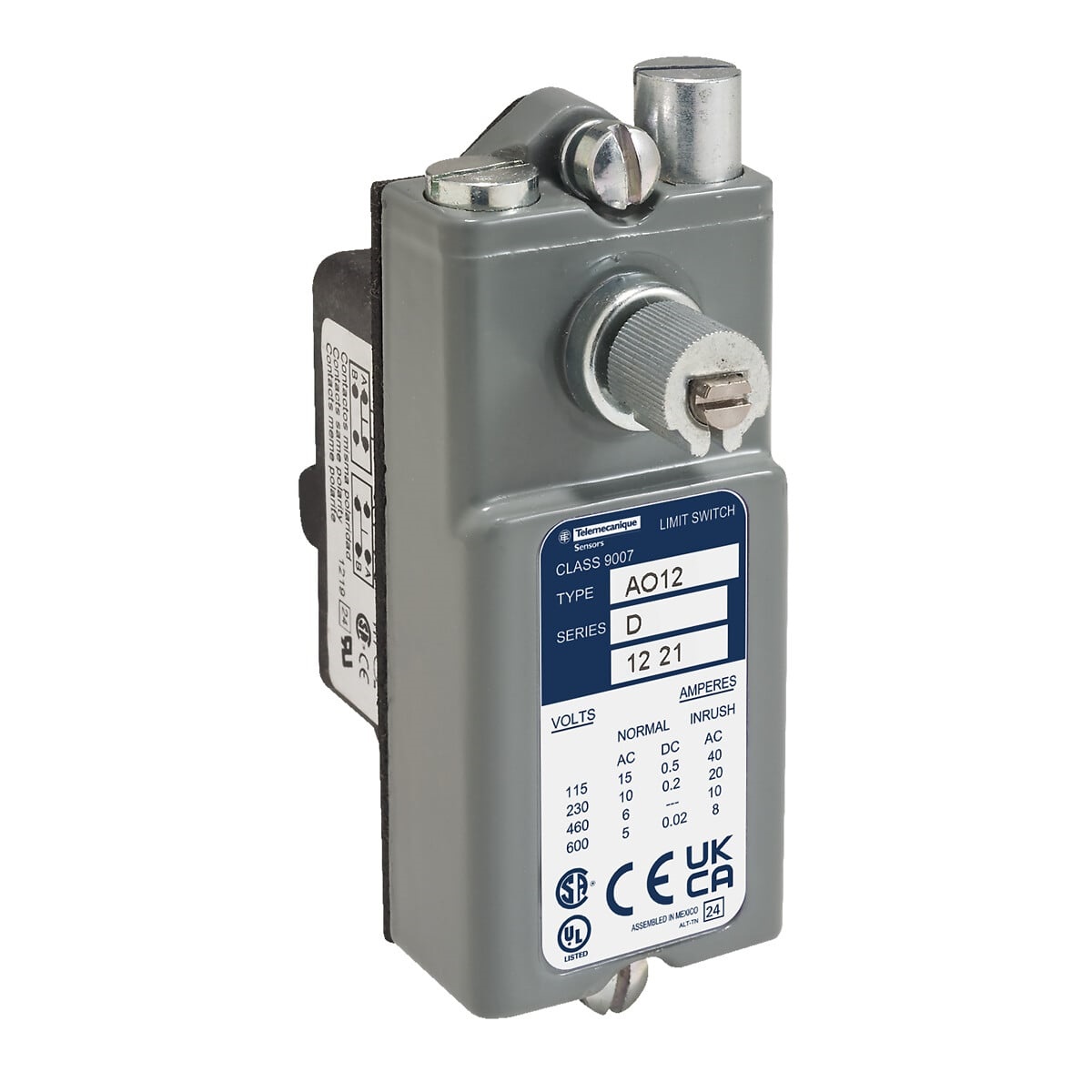

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, single pole double throw, double break, form Z, snap action contacts. It provides switch actuation of CCW and CW. The limit switch has a spring return without operating lever and supports lateral approach in 1 programmable direction. The movement of operating head is rotary. It is a limit switch with a rated voltage of 600V AC and rated operating current of 15A. It is furnished with screw clamp terminals for electrical connection. It is an IP20 and NEMA 1 rated product. This rotary head limit switch has a fixed body, made of cast zinc. Its dimensions are 57.91mm (width) x 35.05mm (depth) x 88.14mm (height). It weighs 0.05kg. It supports open type mounting. The 9007 AO Heavy Duty snap switches with a plastic body and a broad selection of operator styles and contact arrangements in 10A and 15A versions. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
