Descrizione del prodotto

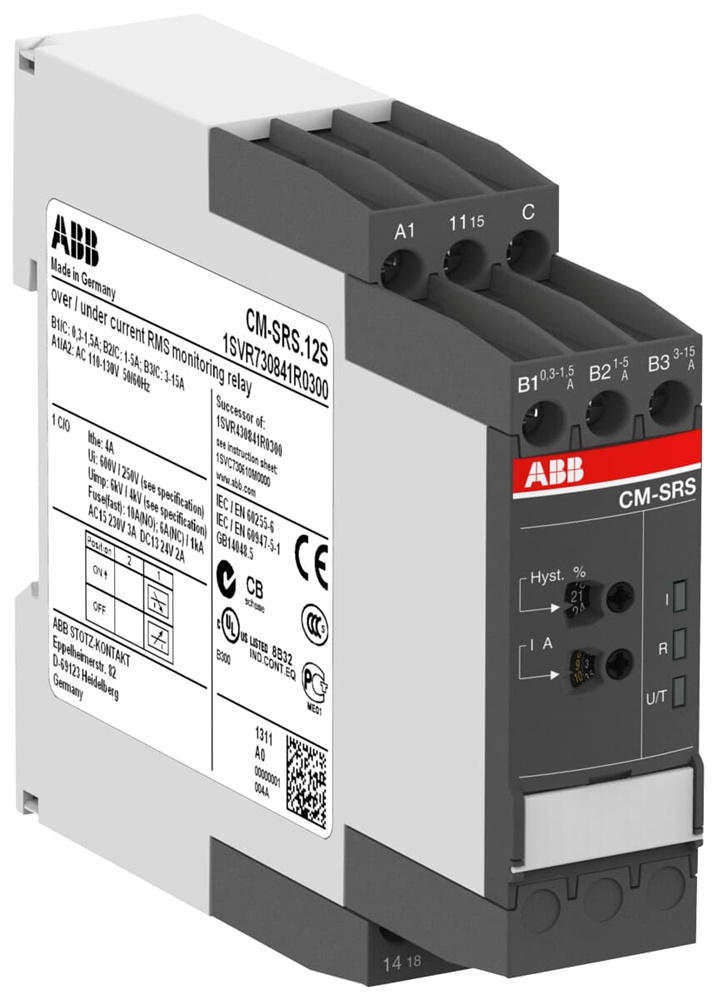

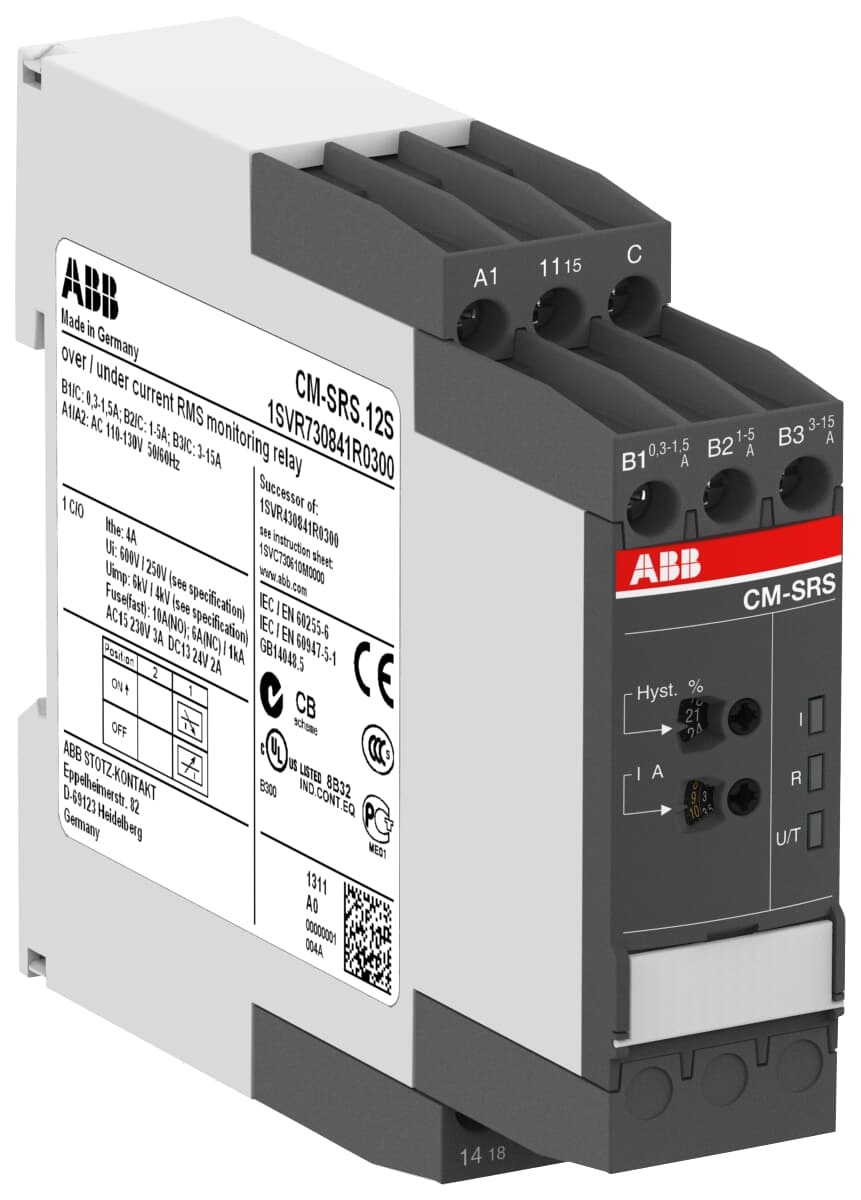

Codice Ordine: CMSRS12SC - Elettronica di comando e controllo, Relè di controllo elettronici, Controllo della corrente monofase, CM-SRS.12S.C da 0,3-1,5 A 1-5 A 3-15 A, min. o max. corr. in c.a./c.c., 1 c/o, alim. 220-240V c.a.- vite, Prodotti di comando, controllo, elettronica e sistemi per la sicurezza Descrizione del produttore: The CM-SRS.12S is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 220 - 240 V AC and has a 1 c/o (SPDT) output contact rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 0.3-1.5 A, 1-5 A and 3-15 A and works according to the open-circuit principle. The CM-SRS.12S is configurable for over- or undercurrent monitoring, the hysteresis is adjustable within a range of 3 to 30 % of the threshold value. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
