Descrizione del prodotto

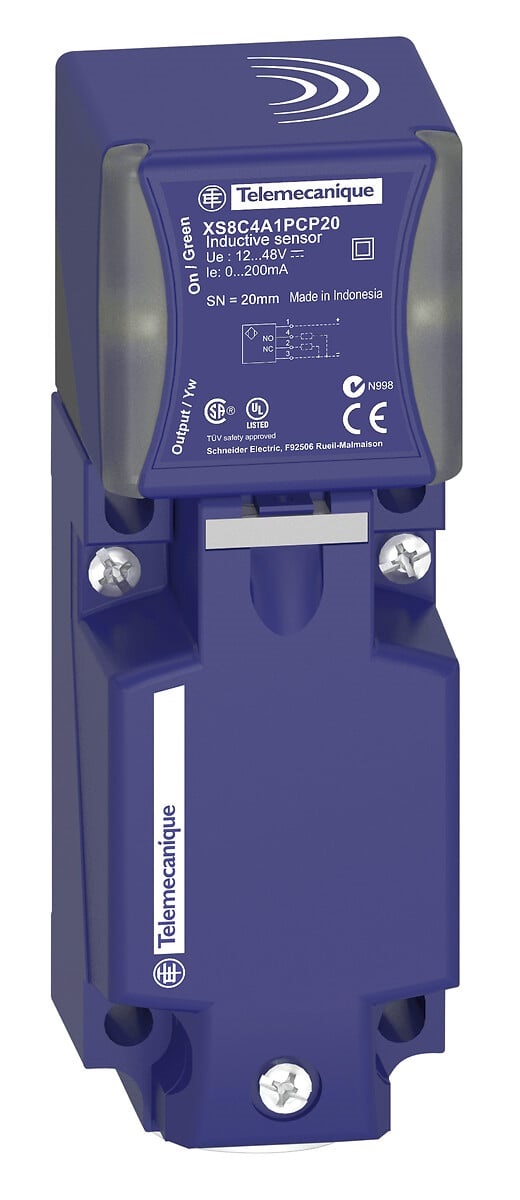

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor has a flat form 40mm x 40mm x 117mm design. It is non-flush mountable and has a 5 positions turret head detection face. It supports 40mm nominal sensing distance and 1 NO or NC programmable discrete output. The inductive proximity sensor with a rated supply voltage of 24V to 240V AC/DC and frequency of 50Hz/60Hz. It is furnished with screw clamp terminals for electrical connection. It is an IP65/IP67/IP69K rated product. The enclosure is made of PBT. Its dimensions are 40mm (length) x 117mm (width) x 40mm (height). It weighs 0.244kg. It is suitable for railway, mobile equipment, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, CCC, CSA and UL. Inductive sensors come in flush and non-flush versions, M8, M12, M18, M30 short and long bodies cylindrical forms, standard cubic, rectangular and flat forms. The inductive proximity sensors for non contact sensing of metal objects up to 60mm. It is designed for use in industrial applications relating to presence detection.
